DRAWMER MC2.1 Desktop Monitor Controller

Beschrijving

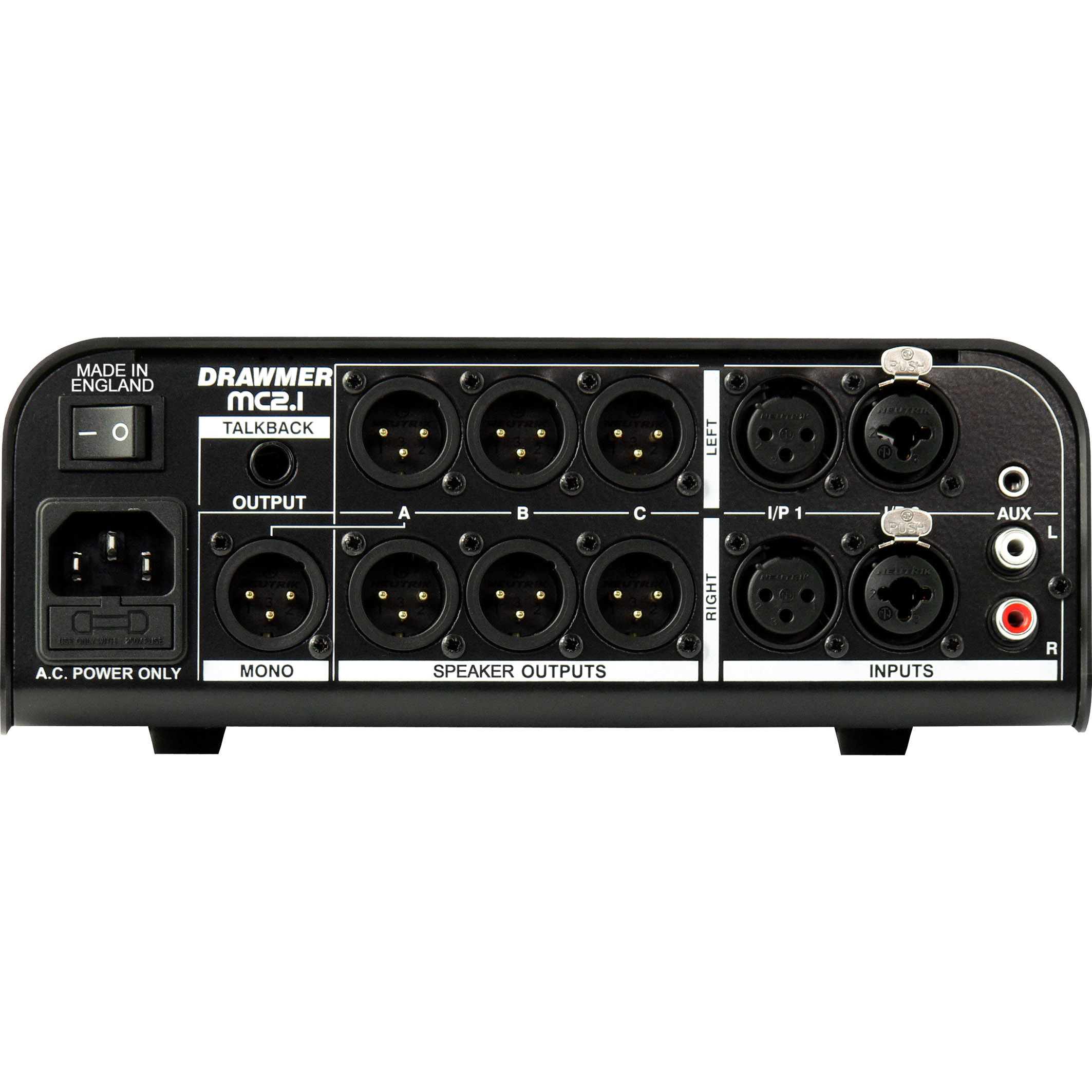

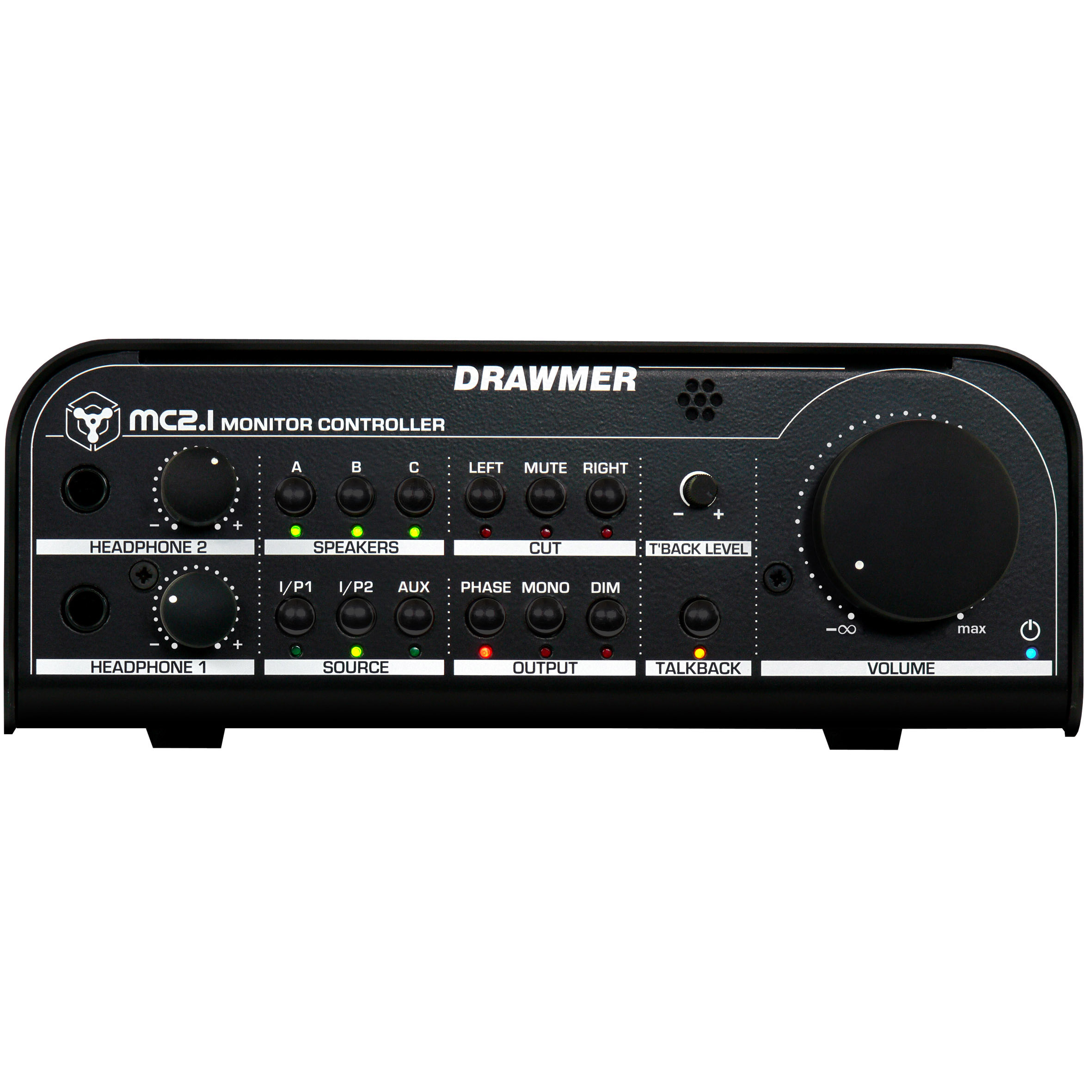

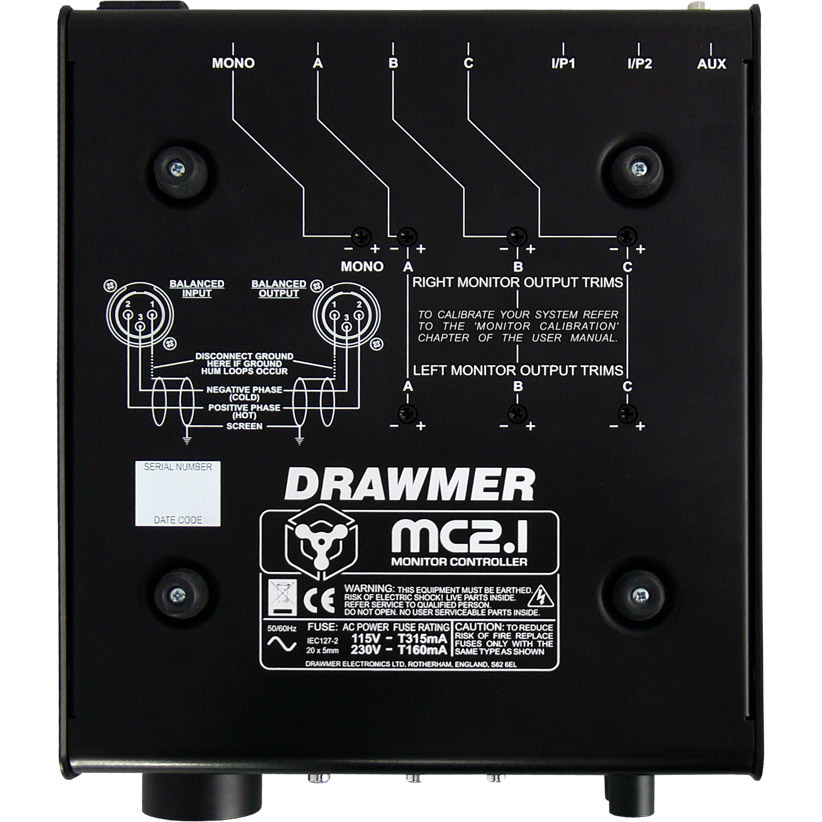

3 balanced speaker outs, one with dedicated mono sub output. All outputs have dedicated trims under the unit for level matching. Four inputs including balanced Neutrik XLR, balanced Neutrik XLR/JACK COMBI, and shared aux phono or 3.5mm jack. Paralleled custom quad pots on main and headphone level controls for excellent channel matching and smooth feel. With low hum toroidal transformer and internal voltage selector switch. Timed relay protection on all speaker outs to prevent power up/down bangs. Two headphone amplifiers with individual level controls. Comprehensive mix checking facilities including left/right cut, phase reverse, mono, dim, mute. Built in talk back mic wit control, mono output jack and internal headphone routing. Stacked and is rack mountable (with the MCB 2U mounting kit)

Download PDF DRAWMER MC2.1
